Cascade 13h Paper Roll Clamp Class 2a Capacity 1300 Kg Opening 370mm To 1300mm 1300 Kg 13H-RCF-A003

by Cascade

(65)

Add to Wishlist Add to Compare

Rs. ********

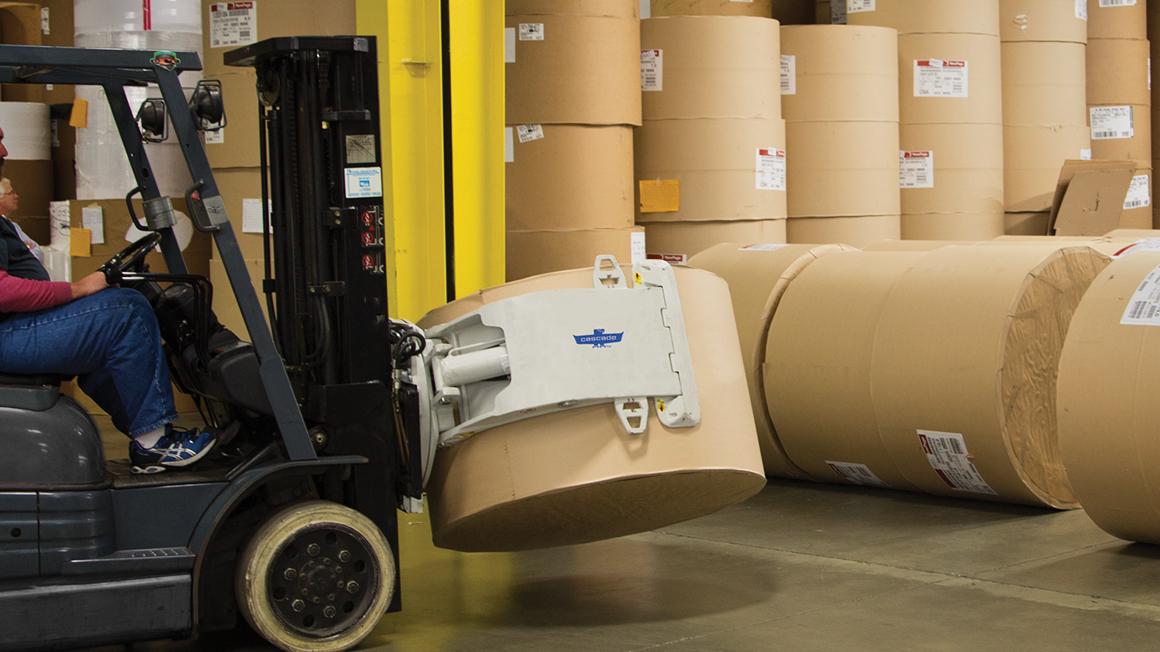

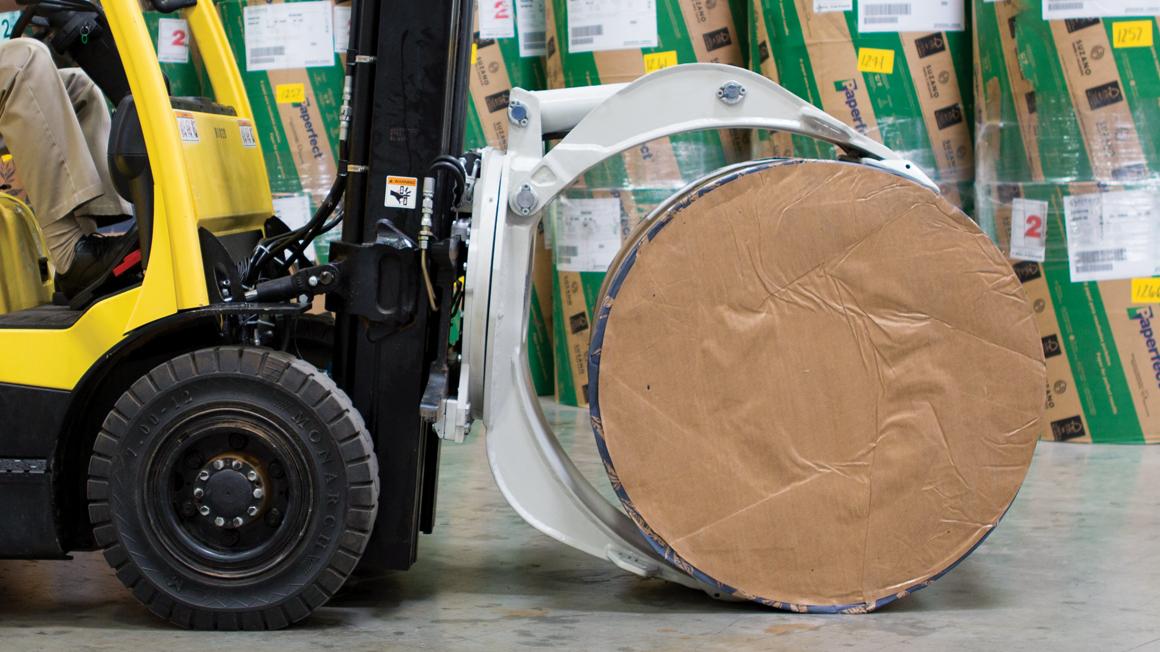

Cascade’s rugged and reliable 13H Paper Roll Clamps have been specifically designed to handle small rolls of newsprint, form and printing stock, making them ideal for newspaper publishers, printers and warehouses. The 13H Paper Roll Clamps feature an expanded roll capacity range and capacity rating allowing you to efficiently handle an even wider variety of roll sizes.

Get Quote

Rent this instead

Product Specifications

Manufacturer	Cascade India Material Handling Pvt Ltd
Capacity	1300 Kg
Model	13H-RCF-A003

View More Specification

Reduced Roll Damage

H-Series pad alignment system, utilizing dual spring technology, holds the contact pads in proper alignment
Thin-arm profi le with smooth-arm contour eases roll breakout and permits close stacking

Fast Roll Handling

Excellent arm speed boosts production
360º rotation to quickly transition to and from bilge position

Excellent Durability

Highly durable rotator features a sealed ring gear design to eliminate contaminants and debris
Unitized construction provides structural integrity in arms and frame
Lube-free pivot bushings provide extended service life
Integral pad protector to guard against pad wear

Specification

Type Of Product	13H PAPER ROLL CLAMP CLASS 2A Capacity 1300 Kg Opening 370mm To 1300mm
Capacity	1300 Kg
Model No	13HRCFA003

More Specification

Cascade

For the best value, service, and products… You can count on Cascade. For over 80 years, Cascade has been providing innovative material handling solutions our customers can count on. Cascade can meet requests with fast, effective and reliable material handling solutions anywhere, anytime. From hydraulic attachments and custom Fork products to all-electric AGV attachments and complete front-end mast/attachment combinations, Cascade has a solution for nearly every industry and application. Cascade is constantly innovating, working with state-of-the-art technologies and incorporating the latest trends into our industry-leading solutions. Cascade meets customers’ changing needs with products that offer integrated data solutions, advanced damage reduction, smart attachments and accessories, and a commitment to energy efficiency and sustainability.

Similiar Category

Different Products

Cascade 70d Bale Clamp Class 4a 3200 Kg 70D-BCS-61C

Rs. ********

Get Quote

Cascade 50d Bale Clamp Class 3a Arm Length 1000 Mm 2700 kg 50D-BCS-63B

Rs. ********

Get Quote

Cascade 50d Bale Clamp Class 3a Arm Length 1200 2700 kg 50D-BCS-64B

Rs. ********

Get Quote

Cascade 35d Bale Clamp Class 2a 1900 Kg 35D-BCS-64A

Rs. ********

Get Quote

Cascade 55g Rotator Class 2a 3000 Kg 55G-RRB-20A-X02

Rs. ********

Get Quote

Cascade 65g Rotator Class 3a 3500 Kg 65G-RRB-10B-X02

Rs. ********

Get Quote

Cascade 90f Paper Roll Clamp Class 4a Capacity 3400 Kg Opening 360mm To 1830 Mm 3400 kg 90F-RCP-03C

Rs. ********

Get Quote

Cascade 13h Paper Roll Clamp Class 3a Capacity 1300 Kg Opening 370mm To 1300mm 1300 Kg 13H-RCF-B003

Rs. ********

Get Quote

Cascade 24h Paper Roll Clamp 3a Capacity 2200 Kg Opening 200 Mm To 1300 Mm 2200 Kg 24H-RAP-B003

Rs. ********

Get Quote

Cascade 24h Paper Roll Clamp 3a Capacity 1950 Kg Opening 200 Mm To 1600 Mm 1950Kg 24H-RAP-B008

Rs. ********

Get Quote

Register for our training programs

Construction Safety

Construction is one of the areas of employment where hazardous conditions are part of the everyday working environment.

electrical-high-voltage-safety-thumbnail

Electrical Safety

The majority of us use electricity every day on the job and this familiarity can create a false sense of security. Let us bear in mind that electricity is always a potential

Fire Safety

Fire safety training educates a set of practices & procedures to minimize the destruction caused by fire hazards.

Chemical Safety

Disaster in a chemical industry is very rare, but negligence could result in devastating consequences.

Hand Tool Safety

Use of tools makes many tasks easier. However, the same tools that assist us, if improperly used or maintained, can create significant hazards in our work areas.

Working at Height

From use of simple stepladders to safety harnesses, there is an imminent risk of a fall which may cause personal injury while performing work at height.

Confined Space Entry

It is critically important that the people involved in making confined space entries are qualified and experienced and therefore trained in the associated hazards,

controlling-infections-in-workplace-and-covid-19-precautions-thumbnail

Controlling Infections in Workplace & COVID 19 Precautions

With the wild spread of the pandemic COVID-19, safety has now reached the pinnacle of priority for every individual.

Worldwide Delivery

MHEBazar delivers products globally.
Support 24/7

Reach our experts today!
First Purchase Discount

Up to 10% discount
Easy Returns

Read our return policy
Secure payment

100% Protected

Product Name	Cascade 13h Paper Roll Clamp Class 2a Capacity 1300 Kg Opening 370mm To 1300mm 1300 Kg 13H-RCF-A003
Capacity	1300 Kg
Model No	13HRCFA003
Load centre	650 mm
Roll Range( Min to Max)	370 mm to 1300 mm
Mounting Class	2A
Long arm Length	812 mm
Short Arm length	571 mm
Horizonal Centre of Gravity	248 mm
Vertical Centre of Gravity	286 mm
Effective Thickness	157 mm
Clamp Weight	393 Kg
Contact Pad Type	Standard Metallic Herringbone
